Engine Factory


Schematic Design Completed in 2019

Location: Hamburg, Germany

Role: Senior Design Lead with The Living, an Autodesk Studio

Size: 30,000 SF

As a model for sustainable airplane engine factories of the future, the design is part of a broad strategy to rapidly decarbonize the aviation industry that cuts across scales from airplane design to manufacturing optimization. Beyond the boundaries of typical architecture, the project aims to advance both sustainable construction and sustainable manufacturing for the manufacturing campus in Hamburg, involving several unique approaches to sustainability.

Read more

With many stakeholders, the client required a deep understanding of the tradeoffs between performance and cost. In order to explore relevant architectural options with this in mind, we used a data-driven design process, or Generative Design. This is the process of defining high-level goals and constraints, and then using the power of computation to explore a wide range of formal and programmatic possibilities. This approach combines the best of human creativity and the best of computer automation today and allowed us to manage complexity, incorporate multiple stakeholders, optimize several distinct objectives, derive options that are both novel and high-performing, and achieve results that would not otherwise be possible. The new strategy breaks from the standard box, and draws new geometric possibilities from its constrained triangular site, with the aim to create a factory imbued with the qualities of a cultural building.


GENERATIVE DESIGN

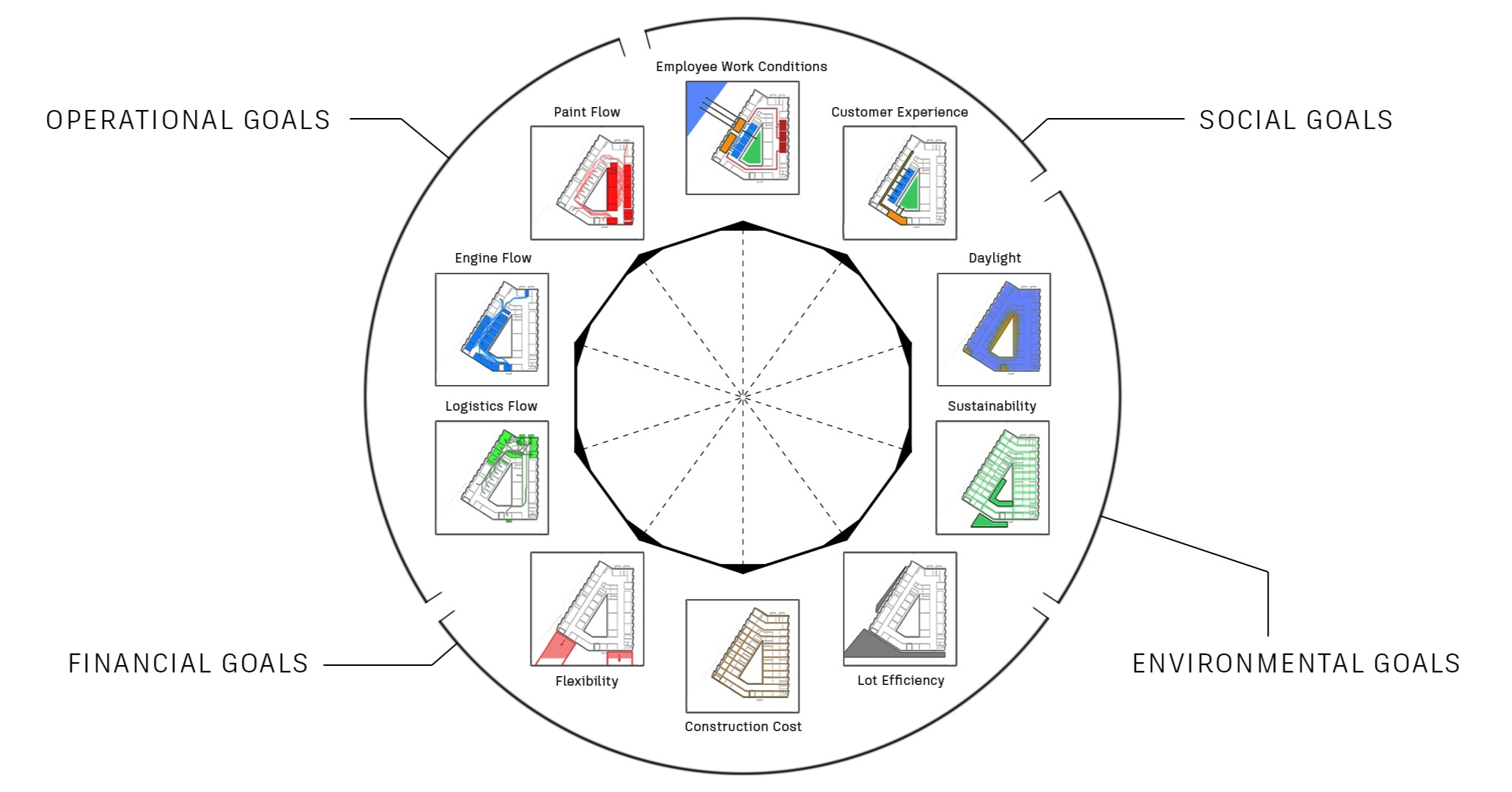

For the Engine Factory, this involved a computational model that measured 10 design goals in four categories: Operational, Financial, Environmental, and Social. This goals included: the three production flows inside the building, the flexibility of the structure, the construction cost, the lot efficiency, the sustainability (DGNB score), daylighting for production tasks, customer experience, and employee working conditions.


ENVIRONMENTAL PERFORMANCE

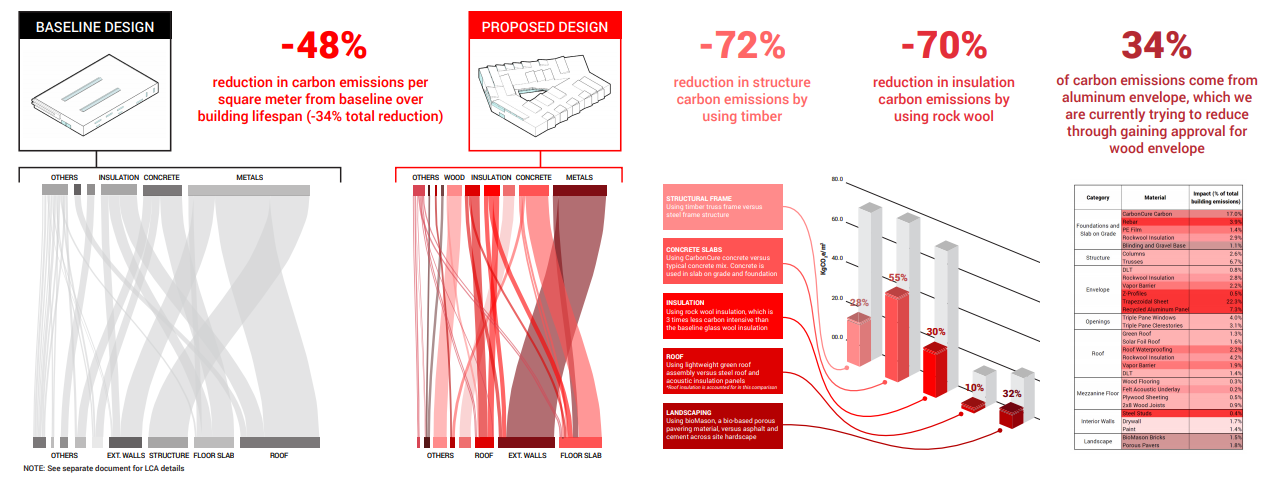

Buildings are never static objects, they are dynamic systems with long lifespans. To address this building's expansive impact, both large and small strategies for embodied and operational carbon are involved. Not only were the best examples of proven low-carbon materials like mass timber utilized, but early examples of next-generation materials were integrated, including CO2-sequestering concrete and bio-based cement. One of the scalar affects of this design was to help initiate the first CarbonCure injected-CO2 concrete plant in Europe.

The design also includes minimizing the need for artificial lighting, maximizing natural ventilation, and maximizing the ways that the building can change over time. Like open source software, this architectural iteration is framed as a fully-functional “release” of the building, but is crafted in a way that it can be changed and “re-written” over time by multiple authors.


SOCIAL IMPACT

Although aviation is known for contributing more than 2% of global carbon emissions, the industry recognizes that its future depends on a wide range of changes to rapidly decarbonize. The building is at the forefront of some of these systemic changes. It contributes to goals for carbon reduction on production campuses and helping to establish more robust circular economies.

By using generative design, more people can become part of the design process, creating space for an inclusive discussion and debate about the most important features and aspirations of the project, including the people involved in constructing the factory and operating the factory, both within the building and beyond the building.
